Rapid Sheet Metal Prototype Fabrication Services

Sheet metal fabrication is the process of turning flat metal stock into custom parts and assemblies through operations such as cutting, punching, bending, forming, joining, and finishing. It is commonly used for brackets, panels, enclosures, housings, guards, and structural components. For prototypes, fabrication allows engineers to evaluate physical fit, strength, access, and assembly before committing to production tooling or larger order quantities.

Effective sheet metal designs use consistent material thickness, practical bend radii, adequate spacing between bends and holes, and tolerances appropriate to the part’s function. Designers should account for bend deductions, tool access, fastener placement, and whether features can be formed without distortion. Providing a clear drawing, 3D model, material specification, finish requirement, and critical dimensions helps the fabrication team review manufacturability accurately.

For the most accurate quote, provide a 3D CAD model and a fabrication drawing that identifies material, thickness, finish, quantity, tolerances, and any critical features. Include assembly notes, hardware specifications, and revision information when applicable. Clear files allow the team to identify fabrication considerations early, align the quote with your intended requirements, and reduce avoidable clarification cycles.

Prototype timing depends on part complexity, material availability, required processes, finishing, quantity, and the completeness of the supplied data. Simple parts with clear requirements generally move faster than multi-bend, welded, finished, or assembly-level components. Early review of drawings and critical dates helps establish a realistic schedule and identify opportunities to simplify the fabrication path without compromising the part’s intended function.

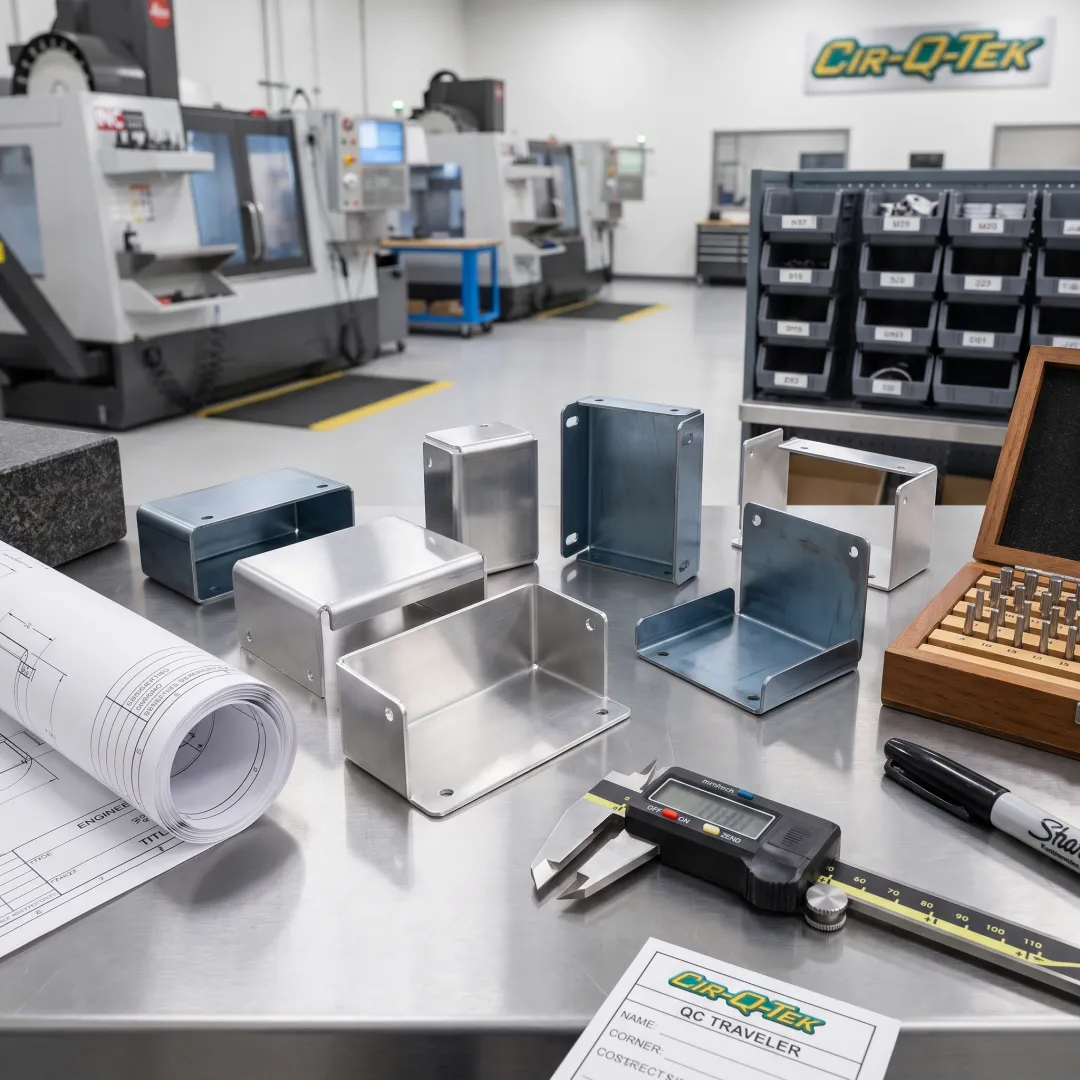

Prototype sheet metal parts are commonly made from aluminum, stainless steel, carbon steel, galvanized steel, copper, brass, and other alloys selected for the application. Material choice should reflect strength, weight, corrosion resistance, conductivity, appearance, and forming requirements. Specify the desired grade and thickness in your documentation so the prototype can be evaluated against the performance requirements expected for the finished product.

Yes. A prototype can be coordinated with formed bends, inserted hardware, welding or joining requirements, and finishes when those features are important to functional testing or product evaluation. Including these requirements in the initial package is important because each process can affect timing, cost, tolerances, and appearance. A complete prototype often provides more meaningful feedback than a flat or unfinished sample alone.

Production-readiness support begins by identifying features that may create avoidable complexity, inconsistent results, or unnecessary cost at higher volumes. Teams can review material selection, tolerances, bend geometry, hardware, assembly sequence, and finishing requirements while prototype feedback is still actionable. This helps create documentation and part specifications that better support repeatable sourcing, inspection planning, and future production scheduling.

Cir-Q-Tek’s manufacturing network includes ISO 9001:2015-certified quality management systems, with additional ISO 13485 and IATF 16949 certifications relevant to medical-device and automotive manufacturing requirements. Quality planning should define critical dimensions, acceptable materials, finish expectations, and inspection needs before work begins. Clear documentation enables appropriate verification and helps ensure prototype feedback is reliable for the next stage of development.
