Aluminum PCBs solve this by moving heat away from components instead of letting it build up. Engineers increasingly specify them over standard FR4 for anything running hot, from LED lighting fixtures to automotive power modules.
This guide covers what aluminum PCBs are, how they're built, where they excel (and where they don't), and what to look for in a manufacturing partner.
Key Takeaways
- Aluminum PCBs (MCPCB/IMS) move heat off components far faster than FR4 via a metal base
- A typical stackup has four layers: copper foil, dielectric, aluminum base, and back membrane
- Copper weight (1–10 oz) and dielectric thickness set both thermal performance and cost
- Thicker dielectric raises breakdown voltage but also increases thermal resistance
- Certified process control and inspection matter as much as the material spec you choose
What Is an Aluminum PCB?
An aluminum PCB replaces the standard fiberglass core with a metal base, usually aluminum, to move heat away from components. You'll see it called several names depending on who's writing the spec sheet:
- MCPCB (Metal Clad Printed Circuit Board) — the broad category
- IMS (Insulated Metal Substrate) — the technical term used in datasheets
- Aluminum-clad PCB or thermally conductive PCB — descriptive shorthand
Here's the distinction that trips people up: MCPCB and IMS are generic terms because the metal base could be aluminum or copper. If you need aluminum specifically, say so in your procurement spec — don't rely on "MCPCB" alone.
According to IPC's technical coverage of metal-clad standards, that ambiguity was significant enough that Bergquist petitioned IPC for a unified metal-base material framework back in 2013, which matured into the IPC-4105 standard.
Metal-core boards aren't a fringe technology anymore. As LED lighting and hybrid/electric vehicle production scaled up through the 2010s, IMS construction moved from a niche thermal fix into a mainstream design choice.
Common Substrate Materials Used in PCBs
FR4 fiberglass remains the default substrate for most electronics — it's cheap, well-understood, and fine for low-power circuits. But once heat becomes the limiting factor, engineers turn to metal-core substrates instead.
- Aluminum: the most common metal-core choice — lightweight, cost-effective, good thermal conductivity
- Copper: better conductivity than aluminum but heavier and pricier, used when aluminum can't move heat fast enough
- FR4: still standard for low-power, general-purpose boards
Aluminum is the default metal-core choice because it balances cost, weight, and thermal performance better than copper for most applications.

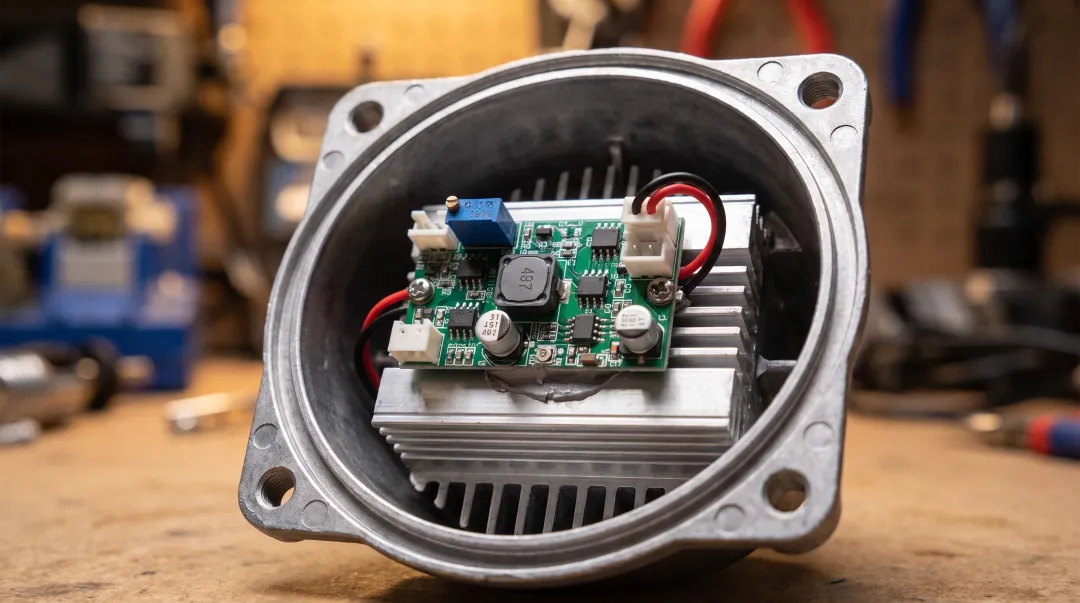

Why Aluminum PCBs Are Standard in LED Lighting
High-intensity LEDs generate a surprising amount of heat for their size. Without a way to dissipate it, junction temperatures climb, light output drops (a phenomenon called lumen depreciation), and the LED's usable lifespan shrinks dramatically.
Aluminum PCBs solve this by acting as a direct heat path from the LED die to a heat sink or fixture housing. That's why "PCB in lighting" almost always means an aluminum-core board — it's become the default construction for LED modules, downlights, and street lighting fixtures.
Structure and Types of Aluminum PCBs
An aluminum PCB uses a four-layer material stack, with each layer handling a specific job.
The four-layer stack:
- Copper foil layer — carries the electrical circuit, etched into traces
- Dielectric layer — electrically isolates copper from the aluminum base while conducting heat downward
- Aluminum base layer — the structural and thermal backbone of the board
- Base membrane — a protective/insulating layer on the underside
Copper Foil and Current Capacity
Copper foil thickness ranges from 1 oz to 10 oz (roughly 35 to 350 microns), depending on how much current the board needs to carry. Manufacturers like TCLAD offer standard weights at 1, 2, 3, 4, and 6 oz in electrodeposited copper. Heavier 8 and 10 oz options use rolled-annealed copper for high-current applications.
Don't assume copper weight alone tells you the ampacity, though. Per IPC-2152 trace current guidelines, current capacity depends on trace width and allowable temperature rise just as much as copper weight. A 2 oz trace that's wide enough can carry more current than a narrow 4 oz trace.
Dielectric Layer: Thermal Conductivity vs. Voltage
The dielectric layer is where thermal performance is decided, and where the main design trade-offs show up. Thicker dielectric layers give you better electrical isolation and higher breakdown voltage, but they also slow down heat transfer.

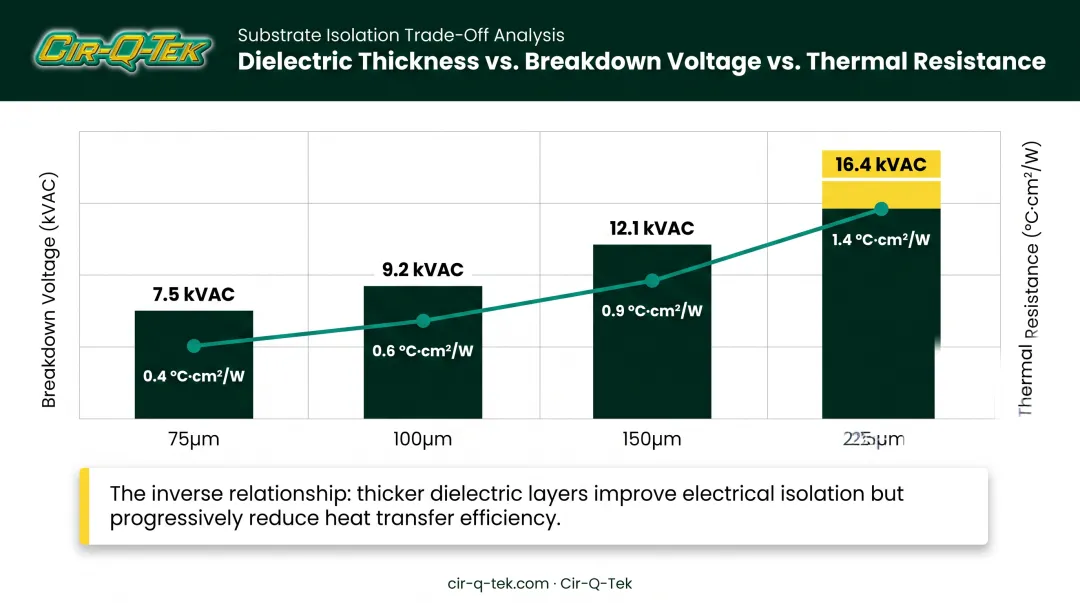

Real product data from TCLAD's HT series illustrates this:
| Dielectric Thickness | Breakdown Voltage | Thermal Resistance |
|---|---|---|
| 75 μm | 8.5 kVAC | 0.32 °C·cm²/W |
| 100 μm | 9.3 kVAC | 0.49 °C·cm²/W |
| 150 μm | 11 kVAC | 0.71 °C·cm²/W |
| 225 μm | 20 kVAC | 1.03 °C·cm²/W |
Notice the pattern: as the dielectric gets thicker to boost isolation, thermal resistance more than triples. Dielectric thickness is not a "thicker is always better" choice. You're balancing safety margin against heat flow.
Structural Configurations
Aluminum PCBs come in four common circuit-layer configurations:
- Single-layer — one circuit layer, simplest and cheapest
- Double-layer, single mounting side — components on one side only
- Double-layer, dual mounting side — components on both faces
- 4-layer designs — for more complex circuits needing extra routing
One important rule of thumb: thermal performance generally decreases as circuit layer count increases. Every added dielectric/copper interface introduces its own thermal resistance, so a 4-layer board won't dissipate heat as efficiently as a well-designed single-layer board carrying the same power.
Advantages, Limitations, and Applications
Where Aluminum PCBs Win
Thermal dissipation is the headline benefit. TCLAD's SFL-12 material, rated at 3.2 W/m-K thermal conductivity, kept boards up to 27°C cooler than comparable FR4 boards in published testing, more than ten times FR4's typical conductivity. That's a real-world temperature swing that directly affects component lifespan.
Beyond thermal performance, aluminum PCBs offer:
- Low CTE dimensional stability that keeps the board flat under thermal cycling
- Tough, lightweight construction versus steel or copper cores
- Strong recyclability at the material level (raw aluminum rates exceed 90% industry-wide; finished PCB assemblies differ)
Limitations Worth Knowing
Aluminum PCBs aren't a universal upgrade:
- Higher cost than standard FR4 for equivalent board area
- Overkill for low-power circuits that don't generate meaningful heat
- Unsuitable for flex or high-vibration designs unless hybridized with other materials
Where They're Used
Aluminum PCBs show up wherever heat and power density collide:
- LED lighting (street lights, downlights, automotive lighting)
- Power electronics and motor drives
- Automotive power modules and SiC/IGBT converters
- Medical devices requiring thermal stability
- Telecom and audio equipment power stages
Miniaturization hasn't cut demand for these boards. IPC's 2024 industry sentiment survey found manufacturers anticipating real production growth across regions: 7.5% in the Americas, 11% in Asia, with even stronger gains projected in the U.S. and China. Denser layouts are pushing engineers toward thermally sophisticated constructions like aluminum IMS.
Manufacturing Process and Design Considerations
Core Manufacturing Steps

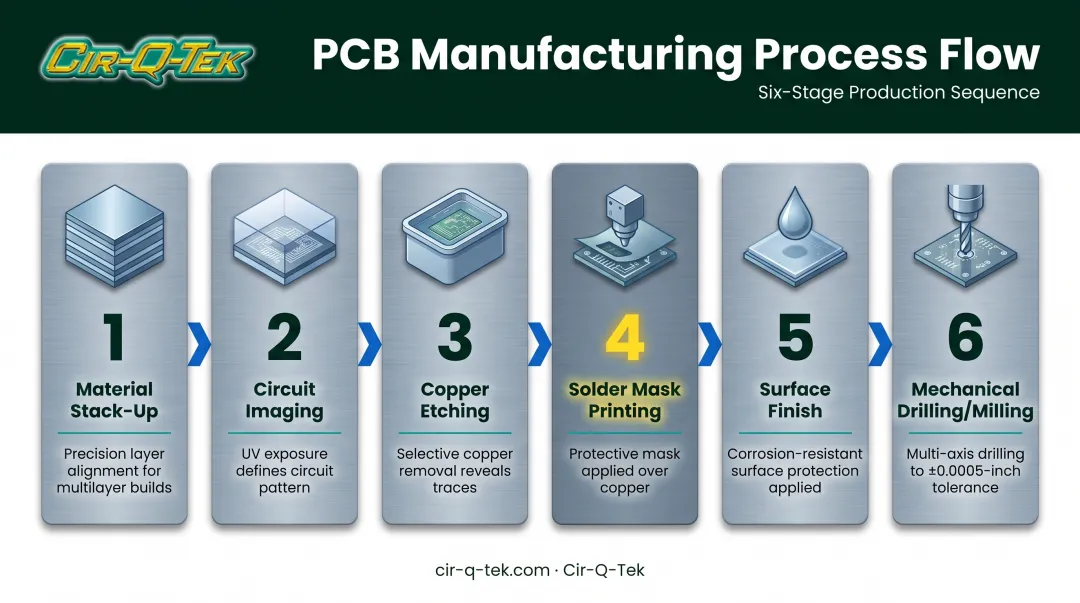

Building an aluminum PCB follows the same broad sequence as standard PCB fabrication, with extra care around the metal base and thermal dielectric:
- Material stack-up: Aluminum base, thermally conductive dielectric, and copper foil are laminated into a single panel
- Circuit imaging: Photoresist defines the trace pattern on the copper
- Copper etching: Removes unwanted copper to leave the circuit pattern
- Solder mask printing: Protects traces and defines solderable areas
- Surface finish: HASL, ENIG, or OSP applied to exposed pads
- Mechanical drilling/milling: Cuts holes and board outlines
The Thick-Copper Etching Challenge
Etching copper foil over 3 oz requires extra care. Thicker copper etches unevenly at the edges, so fabricators apply width compensation in the artwork, enlarging trace features so the final etched width matches spec. Industry rule of thumb suggests roughly 1 mil of lateral etch loss per ounce, per side, though the exact compensation depends on the fabricator's process.
Solder Mask Considerations
Heavy copper traces create height differences that make solder mask application tricky. Mask needs to be thick enough to fully cover trace corners (typically 0.5 mil minimum over the copper) without becoming so thick it interferes with reflow and alignment. Ask your fabricator for their validated mask coverage spec for your copper weight and trace geometry.
Dielectric Selection Trade-offs
Thicker dielectric raises breakdown voltage but also increases thermal resistance. Set the layer to meet your isolation voltage first, then pick the thinnest option that still holds that rating so heat can move into the aluminum base efficiently.
Design Guidelines
- Keep stack-ups symmetrical to avoid warping during thermal cycling
- Minimize plated through-holes where possible; they can weaken the aluminum base
- Use thermal-via alternatives when you need heat paths without full plated vias
- Confirm CTE compatibility among dielectric, copper, and aluminum across your operating temperature range
Choosing the Right Aluminum PCB Manufacturing Partner
Not every fabricator that makes standard FR4 boards handles aluminum construction well. Here's what actually matters when vetting a partner.
Certifications to Check
- ISO 9001 — baseline quality management, table stakes for any serious fabricator
- ISO 13485 — required if your board is headed into a medical device
- IATF 16949 — required for automotive-qualified production
- UL/cUL approval — verify the specific file number covers your exact laminate and copper weight, not just a general logo
Inspection Capabilities
Look for inline AOI (Automated Optical Inspection) and X-ray on the assembly line, plus a documented secondary inspection stage before shipment. Thick-copper aluminum boards benefit especially from X-ray verification of solder joints, since visual inspection alone can miss voiding under components.
Prototype-to-Production Flexibility
Time-to-market pressure means you need a partner who can turn a prototype in days, not weeks, then scale straight into production without re-qualifying a new vendor.
Cir-Q-Tek is built around that model as a one-stop manufacturing sourcing partner. What matters for aluminum PCB work:
- ISO 9001, ISO 13485, IATF 16949, and UL/cUL coverage for medical, automotive, and industrial projects
- U.S. service from Bristol, PA paired with manufacturing coordination out of Shenzhen, China
- Offshore pricing with domestic responsiveness
- Prototypes in three days to build plus two days to dock; production in 10 days to four weeks

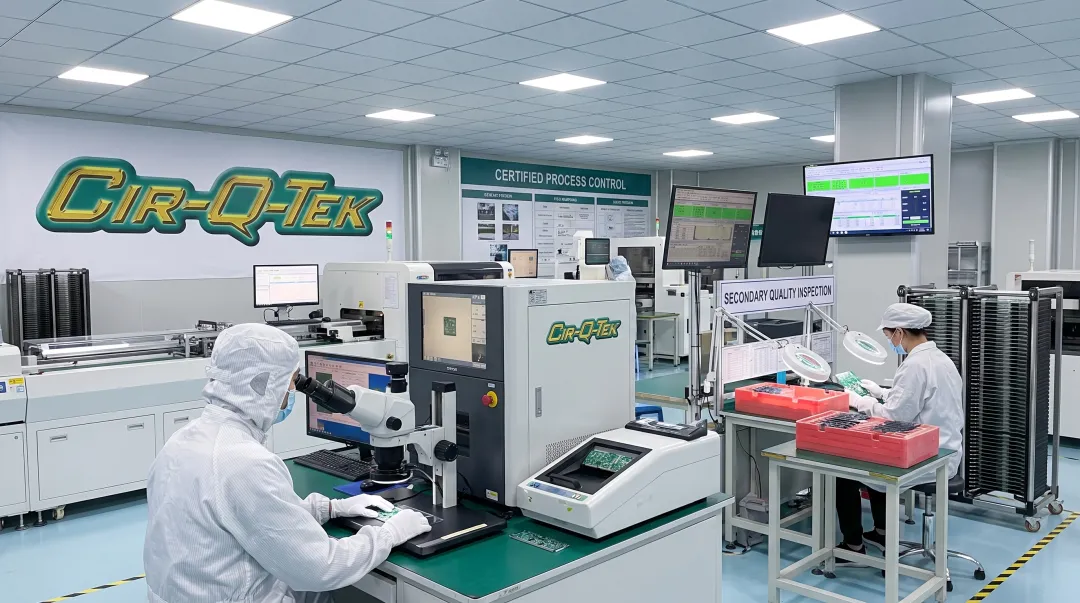

- Secondary quality inspection at the Pennsylvania facility, on top of factory-level IPC checks
For teams that also need PCBA turnkey assembly or CNC-machined components, a certified partner that handles those under one contract keeps the supply chain simpler.
Frequently Asked Questions
What are aluminum PCBs?
Aluminum PCBs are metal-core circuit boards that use an aluminum base beneath the circuit layer for enhanced heat dissipation. They're commonly used wherever standard FR4 boards would overheat under high power loads.
What material is commonly used as the substrate for PCBs?
FR4 fiberglass is the standard substrate for most general-purpose electronics. Aluminum and copper substrates are used instead when a design needs better thermal management.
What does MCPCB stand for?
MCPCB stands for Metal Clad Printed Circuit Board. It's a broad category that includes aluminum-core and copper-core boards, so "aluminum PCB" and "MCPCB" aren't always interchangeable.
What is PCB in lighting?
In LED lighting, "PCB" almost always refers to an aluminum-core board that pulls heat away from the LED die. This heat management directly extends LED lifespan and preserves light output over time.
Are printed circuit boards still used?
Yes. PCBs remain essential across electronics manufacturing, and aluminum variants are expanding as higher power density pushes more designs toward metal-core boards.
