Ceramic PCB Manufacturer | Ceramic Printed Circuit Boards

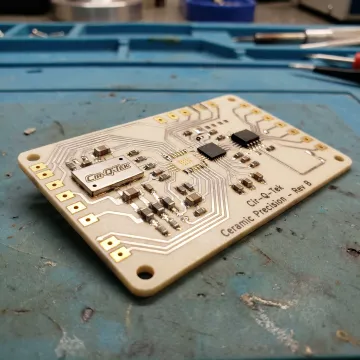

A ceramic printed circuit board is a circuit substrate made with ceramic material rather than conventional fiberglass-based laminate. Ceramic substrates are commonly selected for their electrical insulation, dimensional stability, and ability to perform in demanding thermal or environmental conditions. The final board design may include conductive traces, pads, vias, and finishes tailored to the application’s electrical, mechanical, and assembly requirements.

Ceramic PCBs are used in electronics that benefit from stable, insulating substrates and dependable operation under demanding conditions. Common applications include power electronics, LED systems, automotive electronics, industrial controls, telecommunications equipment, medical devices, and other compact or high-reliability products. Material selection should be based on the required thermal behavior, electrical requirements, mechanical constraints, component layout, and the product’s operating environment.

Cir-Q-Tek supports quick-turn PCB prototype programs and can help coordinate the documentation, manufacturing requirements, and transition planning needed for a ceramic PCB project. Prototype PCB builds generally take three days to build and two days to ship, while the specific material stack-up, fabrication complexity, and inspection needs should be reviewed during quoting. Provide complete design files for the most accurate evaluation.

For PCB quotes, Cir-Q-Tek requests a Gerber package or ODB data and a bill of materials. Including fabrication notes, layer information, dimensions, material requirements, finish preferences, panel details, and expected quantity helps clarify the scope. If the board will move into assembly, component information and assembly documentation allow the team to assess procurement and manufacturing requirements more completely.

Yes. Cir-Q-Tek supports both small prototype orders and production manufacturing quantities, with no order quantity declined solely because of its size. Production lead times are typically ready to ship in 10 days to four weeks. Actual timing depends on the ceramic material, board complexity, required features, testing, documentation completeness, and component availability if assembly is included.

Cir-Q-Tek’s PCB capabilities include single-sided, double-sided, and multilayer boards up to 40 layers, blind and buried vias, impedance control, laser-drilled holes, and laser direct imaging. Available specifications include line and spacing down to .0025/.0025 inch and laser-drilled holes down to .0039 inch. Material-specific feasibility, including ceramic construction, should be confirmed during technical review.

Cir-Q-Tek provides turnkey PCB assembly services that include component purchasing, SMT processing, through-hole assembly, testing, box build, and packaging. SMT lines use inline AOI and X-ray inspection and can process fine-pitch components, including 01005, QFN, CSP, and BGA packages. Assembly suitability depends on the ceramic board design, component specifications, soldering requirements, and test plan.

Cir-Q-Tek combines U.S.-based customer service with offshore manufacturing coordination to pursue cost-efficient production without losing project visibility. The team reviews each project for practical manufacturing methods and supports quantities from prototypes through production. Complete, accurate design packages help prevent avoidable revisions, while early discussion of material, features, volumes, and delivery targets supports more useful quote comparisons.
