5-Axis CNC Machining Services for Complex Parts

The cost of a 5-axis CNC machine varies widely based on machine size, spindle configuration, automation, controls, tooling, and accuracy requirements. For customers buying machined parts rather than equipment, pricing is typically driven by material, geometry, tolerance, surface finish, quantity, inspection requirements, and programming time. Cir-Q-Tek prepares project-specific quotes from CAD/3D data and fabrication drawings.

5-axis machining can be faster for complex parts because it allows the cutting tool or workpiece to approach features from multiple angles in fewer setups. Reducing repositioning can shorten handling time, improve alignment between features, and limit the need for separate fixtures. Actual cycle time still depends on material, tooling, part geometry, tolerance requirements, and the number of parts required.

5-axis machining is often worthwhile when a component has compound angles, contoured surfaces, deep cavities, or features that would otherwise require several setups. It can reduce fixture complexity, improve feature-to-feature accuracy, and streamline production of difficult geometries. For simple prismatic parts, conventional milling or turning may be more economical. A manufacturability review helps identify the most efficient approach.

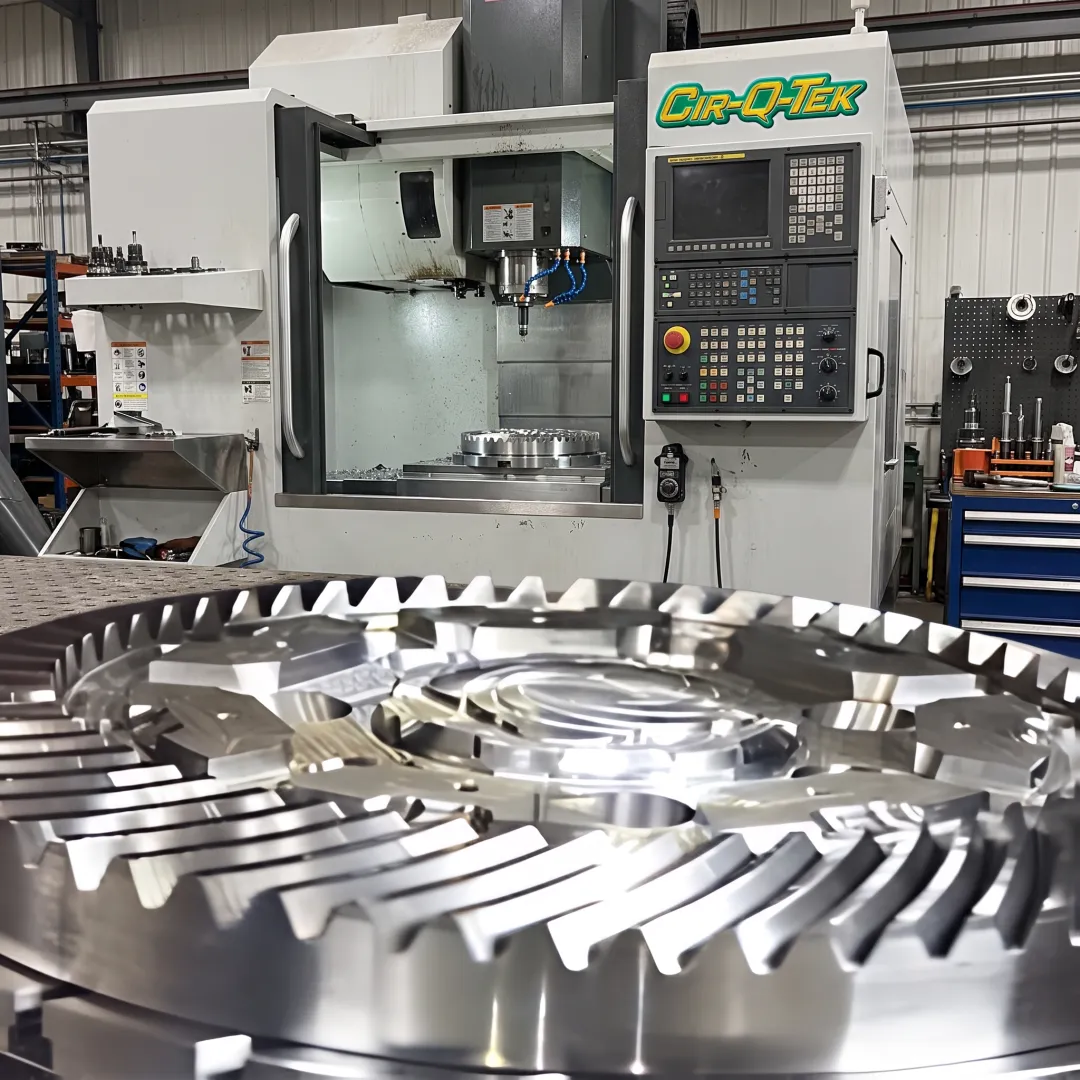

A 5-axis CNC machine can produce complex parts with contoured surfaces, angled holes, undercuts, deep pockets, and intricate features that are difficult to reach with fewer axes. It is commonly used for precision components in medical, automotive, industrial, aerospace-like, and commercial applications. Cir-Q-Tek also supports a broad material range, including metals, engineered plastics, ceramics, composites, and machined castings.

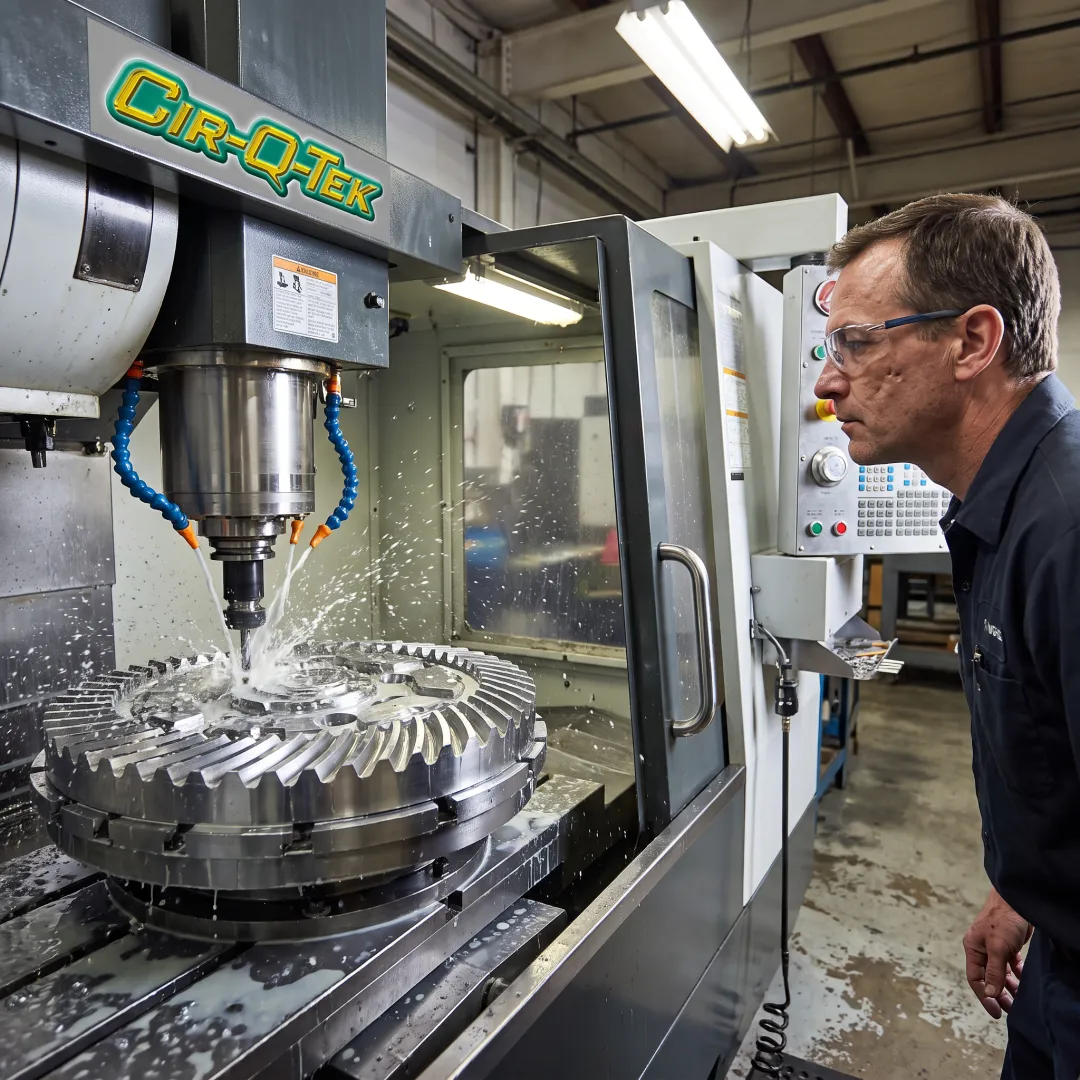

5-axis CNC refers to a machining system that moves a cutting tool or workpiece along three linear axes—X, Y, and Z—plus two rotational axes. This expanded range of motion lets the machine access multiple sides and angles of a part with fewer repositioning operations. The result can be more efficient machining and better alignment for complex, high-precision features.

For non-PCB/PCBA machining projects, Cir-Q-Tek requests CAD and 3D data and/or fabrication drawings. Complete files should identify material, dimensions, tolerances, finishes, thread specifications, critical features, quantities, and any inspection requirements. Providing revision-controlled documentation and a clear bill of requirements helps the team assess manufacturability, select the appropriate process, and prepare an accurate quote.

Cir-Q-Tek can machine nearly any material, including standard-grade metals, high-strength and high-temperature metals and alloys, engineered plastics, ceramics, composites, and other non-metals. The team also has expertise in finish machining aluminum, zinc, magnesium, iron, and stainless-steel castings. Material selection should account for the part’s mechanical loads, temperature exposure, corrosion resistance, finish, and tolerance requirements.

Machining is performed in ISO 9001, ISO 13485, and IATF 16949 certified facilities, with strict supervision and high-end metrology equipment used for inspection. Quality planning can be aligned to the drawing’s critical dimensions, tolerances, and documentation needs. This controlled approach is particularly valuable for medical, automotive, industrial, and other applications where consistent conformance is essential.
