Semi Flexible PCB Manufacturing Solutions

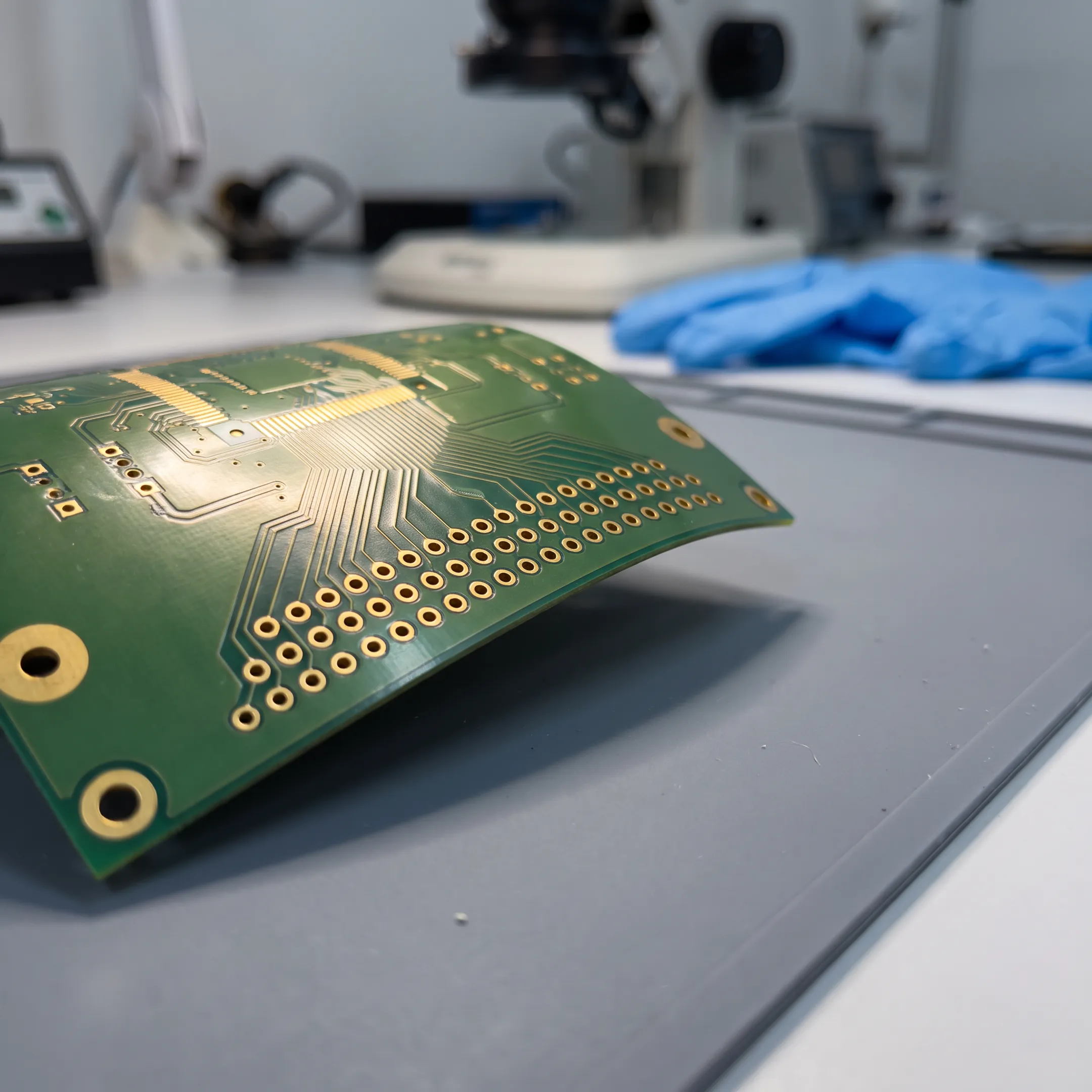

A semi flexible PCB is a printed circuit board designed to bend in a controlled way during installation or use, while retaining more structural stability than a fully flexible circuit. It can help reduce connectors, save space, and simplify packaging in compact electronic products. Material selection, bend location, copper configuration, and bend-cycle requirements should be defined early in the design process.

A semi flexible PCB is generally a board with a designated area intended for limited or controlled bending. A rigid-flex PCB combines distinct rigid sections with dedicated flexible circuit layers designed for repeated flexing or dynamic movement. The right choice depends on the required bend radius, number of bend cycles, component layout, electrical requirements, and the product’s mechanical enclosure.

Cir-Q-Tek requests a Gerber package or ODB data and a bill of materials for PCB quotations. To support an accurate review, include the layer stackup, board dimensions, quantity, material requirements, copper weights, surface finish, impedance needs, drill information, and any controlled-bend requirements. Clearly identify bend areas and keep components, vias, and sensitive features appropriately spaced from them.

Yes. Cir-Q-Tek supports small prototype orders as well as production quantities and has not limited orders based on quantity. For standard PCB prototype samples, the stated timeframe is generally three days to build and two days to ship. Actual timing for a semi flexible design depends on its stackup, materials, complexity, testing needs, and manufacturing review findings.

Cir-Q-Tek manufactures multilayer PCBs up to 40 layers and supports blind and buried vias, impedance control, laser-drilled holes down to .0039 inches, and line and spacing down to .0025/.0025 inches. These capabilities can support dense designs where routing, signal integrity, and compact packaging matter. A fabrication review helps confirm that the selected features fit the intended semi flexible construction.

Available metallic finish options include HASL, lead-free HAL, ENIG, Immersion Silver, Immersion Tin, and ENTEK 106 A-HT/OSP. The best finish depends on solderability requirements, component type, storage duration, environmental exposure, cost targets, and final assembly process. Selecting the finish during the quoting stage helps align fabrication with the product’s reliability and manufacturing needs.

Yes. Cir-Q-Tek offers RoHS-compliant bare boards and provides RoHS support for assembly applications. If your product requires specific material declarations, lead-free finishes, or compliance documentation, identify those requirements with the quotation package. Early review is especially important for regulated products, because material, finish, and traceability expectations can affect fabrication planning and inspection requirements.

Cir-Q-Tek states that production and manufacturing orders are generally ready to ship in 10 days to four weeks. The final schedule depends on board complexity, semi flexible construction requirements, layer count, materials, surface finish, quantity, testing, and component availability for assembled products. Providing complete manufacturing data early allows the team to review requirements and plan the most efficient production path.
