Electronics Manufacturing Test and Inspection Services

Electrical inspection pricing varies substantially based on what is being inspected, the product’s complexity, required test coverage, quantity, documentation, and any applicable industry standard. For electronics manufacturing, inspection may involve visual checks, automated optical inspection, X-ray review, functional testing, or a combination. Cir-Q-Tek does not publish fixed inspection rates; quotes are developed around the PCB, assembly requirements, bill of materials, and production scope.

In Maryland, “e-inspection” commonly refers to an electronic or remote process used by a local authority for building, permitting, or compliance inspections. That process is separate from electronics manufacturing inspection. For PCB assemblies, electronic inspection generally means using systems such as automated optical inspection (AOI) and X-ray equipment to verify assembly quality. Requirements for Maryland permitting should be confirmed directly with the relevant local jurisdiction.

For electronics manufacturing, three practical inspection categories are visual inspection, automated optical inspection, and X-ray inspection. Visual inspection evaluates workmanship and obvious defects; AOI uses cameras and software to check placement, polarity, solder features, and markings; X-ray inspection evaluates hidden solder joints and internal connections, particularly on BGA and other concealed-interconnect packages. A project may also require functional testing based on its performance requirements.

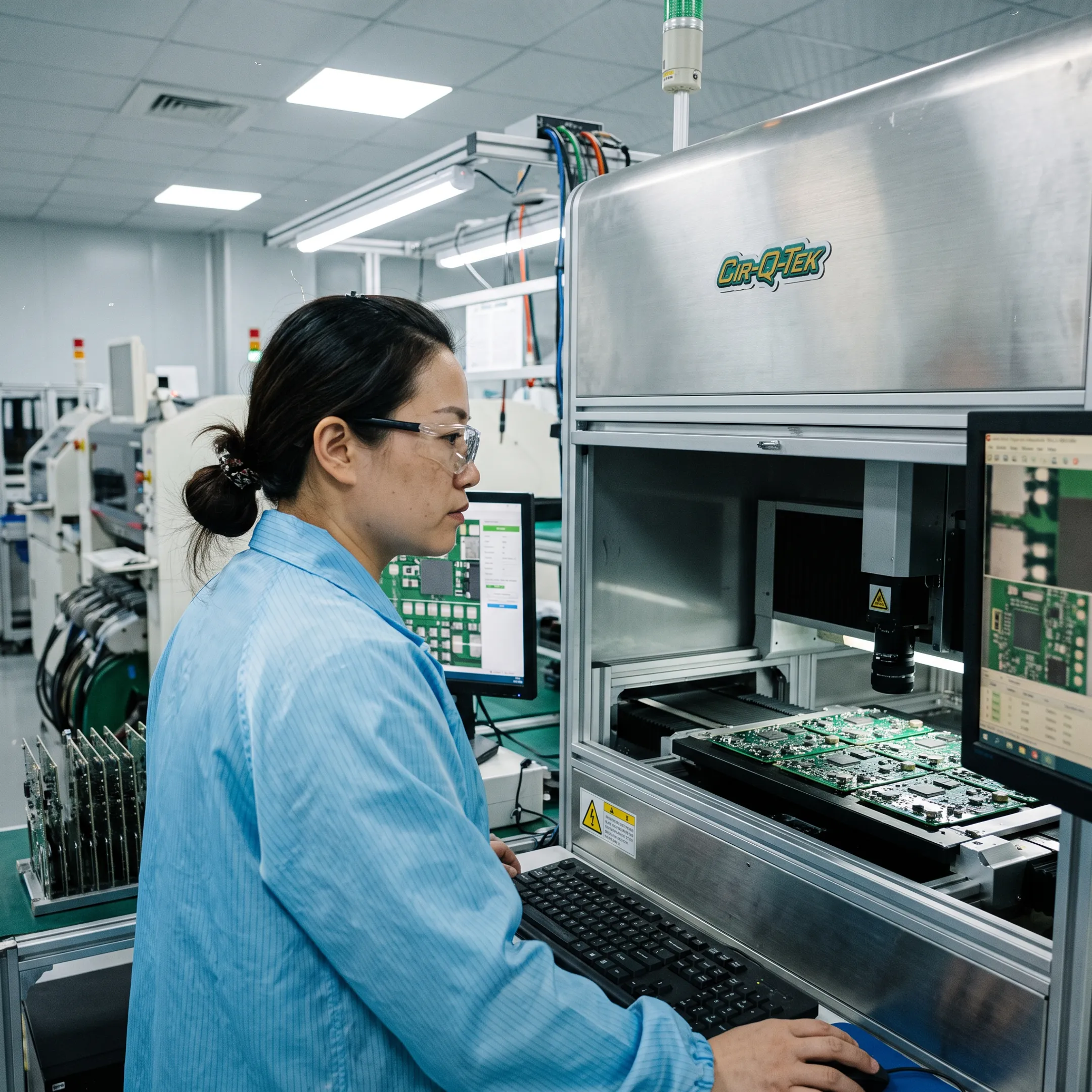

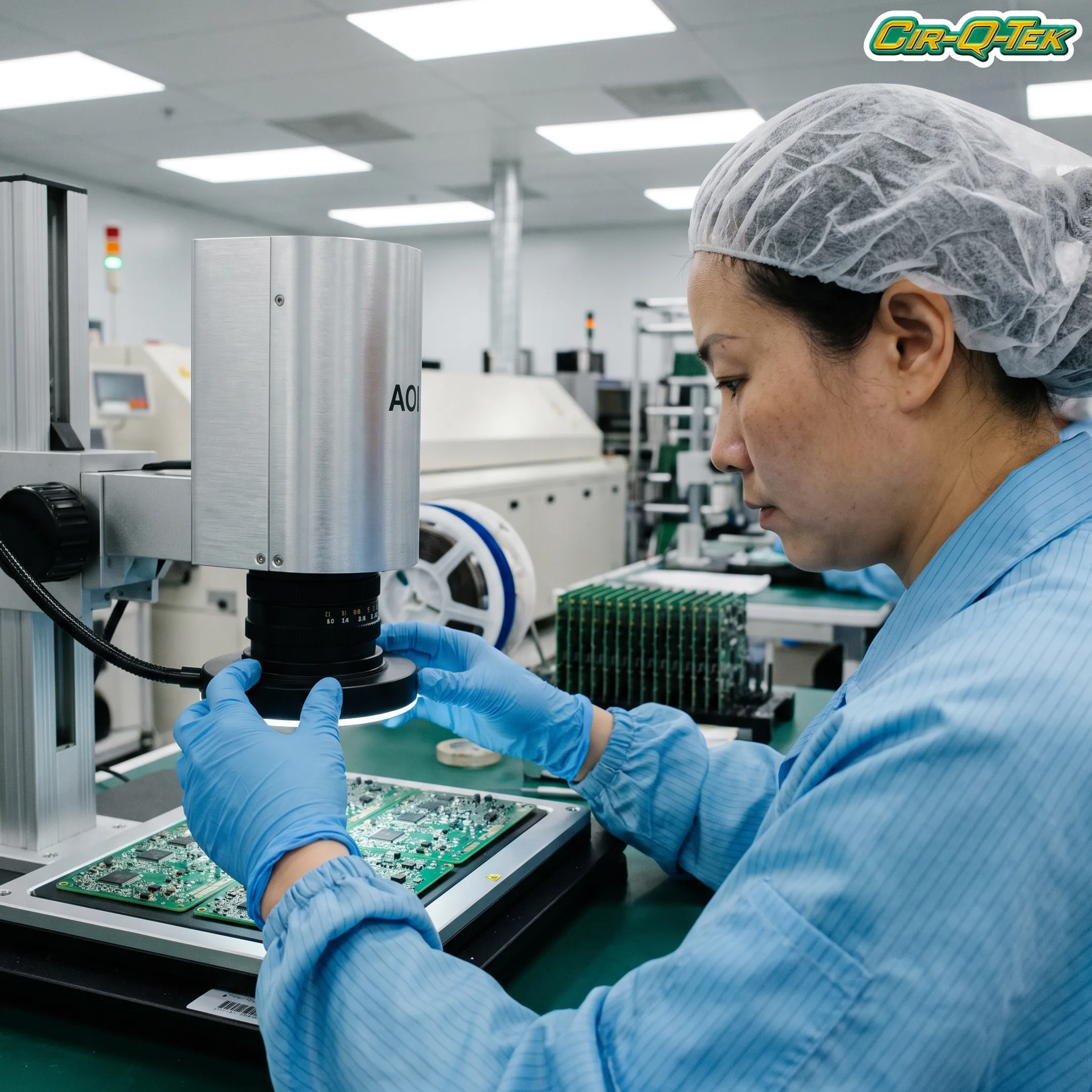

Automated optical inspection uses cameras and programmed criteria to review visible features on a populated circuit board. Depending on the build, AOI can help identify component presence, alignment, polarity, solder-related conditions, incorrect parts, and marking discrepancies. It is especially valuable for repeatable production verification, but it cannot see concealed solder joints. Those hidden connections may require X-ray inspection or additional test methods.

X-ray inspection is particularly useful when important solder connections are hidden beneath a component package or otherwise cannot be evaluated visually. It is commonly considered for BGA, QFN, CSP, and fine-pitch assemblies. Cir-Q-Tek’s SMT lines include X-ray capability for inline automated inspection support. The appropriate inspection plan should reflect the package type, product risk, applicable specifications, and customer acceptance criteria.

Yes. Cir-Q-Tek supports small prototype orders as well as production quantities, with integrated PCB fabrication, component purchasing, SMT processing, through-hole assembly, inspection, box build, and packaging capabilities. Prototype inspection helps teams identify manufacturability or assembly concerns early, while production inspection supports repeatable quality verification. PCB prototype samples generally take three days to build and two days to ship, subject to project requirements.

For PCB and PCBA projects, Cir-Q-Tek requests a Gerber package or ODB file and a bill of materials. These materials allow the team to evaluate the board design, component requirements, manufacturing scope, and inspection needs. Providing assembly drawings, test requirements, revision details, target quantities, and delivery expectations can further improve quote accuracy and help align the production plan with your quality objectives.

Cir-Q-Tek works with ISO 9001:2015-certified facilities for quality management, ISO 13485-certified manufacturing for medical device requirements, and IATF 16949-certified manufacturing for automotive requirements. The company also cites UL and cUL approval, ISO 14001 certification, and IPC standards for wire harness assembly. Certification applicability should be confirmed for the specific product, facility, and scope of work before production begins.
