Rapid Metal Prototyping Services for Faster Development

Rapid prototyping is the process of producing an early physical version of a part so teams can evaluate its fit, function, appearance, and performance before committing to production tooling or volume manufacturing. For metal components, CNC machining is often used because it can create precise, durable parts directly from CAD data. Prototype testing can reveal design, assembly, and manufacturability issues early.

Rapid prototyping can use many materials depending on the intended test and manufacturing method. Cir-Q-Tek’s precision machining capabilities cover standard-grade metals, high-strength and high-temperature metals and alloys, engineered plastics, ceramics, composites, and other non-metals. The team also finish-machines aluminum, zinc, magnesium, iron, and stainless steel castings. Material selection should reflect strength, heat, corrosion, weight, and functional requirements.

Prototype cost is driven by material, part size, geometry, tolerance requirements, quantity, inspection needs, finishing, and machining time. Complex multi-axis features or tight tolerances generally require more programming and setup than simple components. Cir-Q-Tek provides quotes based on CAD and 3D data and/or fabrication drawings for non-PCB and PCBA items, allowing the manufacturing approach and costs to be evaluated accurately.

For a non-PCB or PCBA prototype quote, provide CAD and 3D data and/or fabrication drawings. Include the desired material, quantity, critical tolerances, thread specifications, surface-finish requirements, and any inspection or testing expectations. Clear documentation helps the manufacturing team review geometry, select an efficient machining approach, identify potential concerns, and return a quote aligned with the part’s functional requirements.

CNC-machined prototypes can be highly accurate when the design, material, and inspection plan are properly defined. Cir-Q-Tek states its precision machining capability can maintain tolerances as close as ±0.0005 inches. Achievable tolerances for an individual feature may vary with geometry, size, material stability, wall thickness, and access for tooling, so critical dimensions should be clearly identified on the drawing.

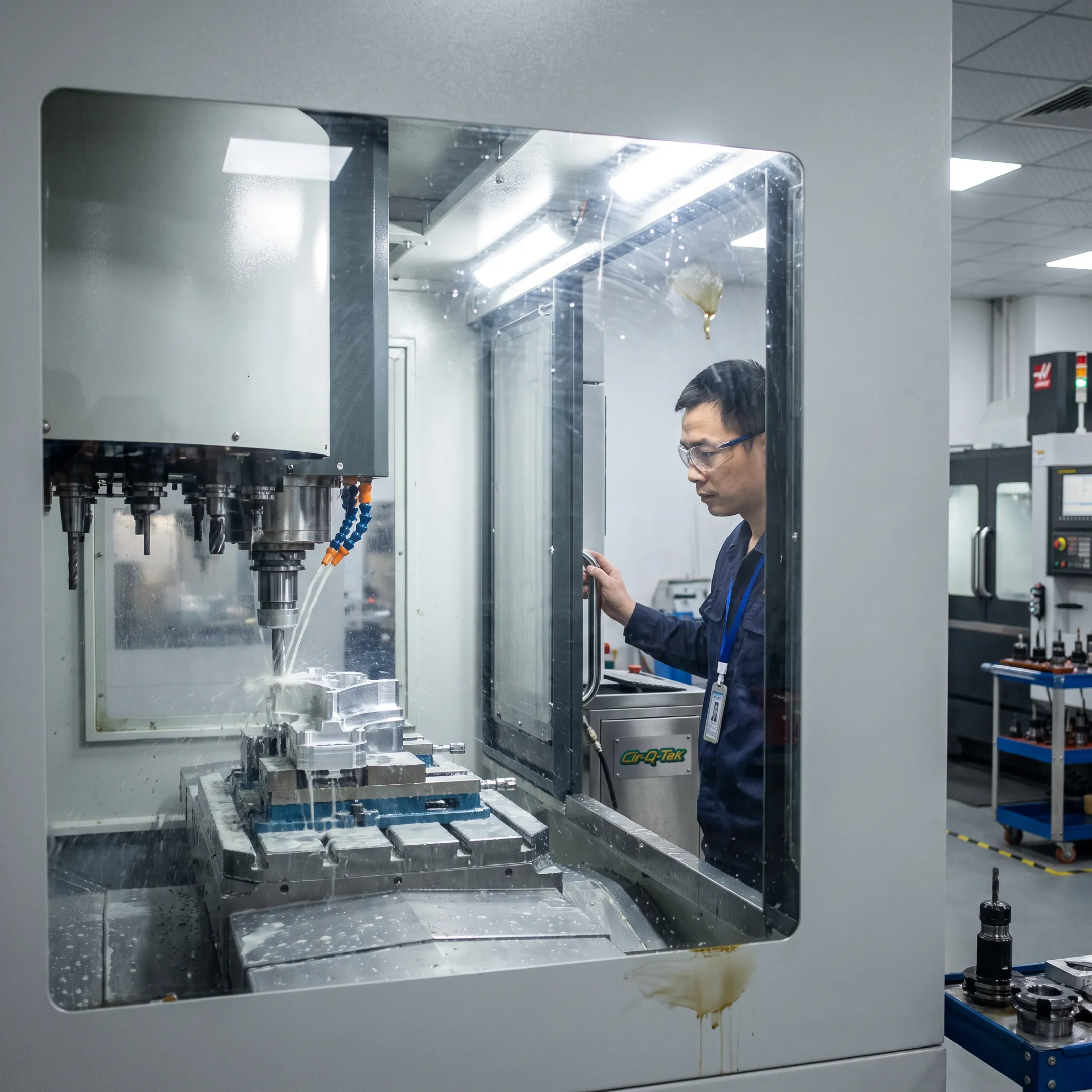

Yes. Multi-axis and multi-tasking CNC machinery, live tooling, and multiple spindles support intricate features and complex geometries. Completing more features in a single setup can improve alignment and reduce handling between operations. During review, CAD and CAM expertise can help identify practical machining strategies for deep pockets, angled features, turned-and-milled details, and other challenging prototype requirements.

Yes. Prototype machining can be planned with future production in mind. Cir-Q-Tek supports prototype quantities as well as broader manufacturing needs and can assist with engineering, machining, inspection, stocking, and just-in-time shipment. Using production-minded drawings, materials, and tolerances during the prototype stage can help reduce redesign work and support a smoother transition when volume requirements increase.

Prototype quality is supported through controlled manufacturing and measurement of critical features against the supplied specifications. Cir-Q-Tek uses high-end metrology equipment under strict supervision and performs machining in ISO 9001, ISO 13485, and IATF 16949 certified facilities. Customers should identify dimensions, surfaces, and functional characteristics that require particular verification so inspection can match the intended application.
