Electronic Design & Manufacturing Built for Scale

An OEM, or original equipment manufacturer, owns the product concept, brand, and product requirements. An EMS provider, or electronics manufacturing services provider, manufactures electronic products on the OEM’s behalf. EMS support can include PCB fabrication, component sourcing, assembly, testing, box build, packaging, and logistics. The OEM retains product direction while the EMS partner supplies manufacturing expertise and production capacity.

Electronics manufacturing turns engineering files and product requirements into finished electronic assemblies or products. Typical work includes producing printed circuit boards, purchasing components, placing surface-mount parts, completing through-hole assembly, inspecting and testing assemblies, and preparing products for shipment. A full-service provider may also coordinate box build, packaging, inventory stocking, and just-in-time delivery to simplify the customer’s supply chain.

PCB design creates the board layout that electrically and mechanically connects a product’s components. It includes component placement, routing, layer configuration, drill data, and manufacturing documentation such as Gerber or ODB files. PCB manufacturing then fabricates the bare board from those files. Cir-Q-Tek provides design-to-fabrication support and manufactures boards ranging from simple designs to multilayer boards with advanced features.

For PCB and PCBA quotes, Cir-Q-Tek requires a Gerber package or ODB file and a bill of materials (BOM). These documents define the board construction, artwork, drill information, components, and quantities needed to assess manufacturability and pricing. Providing assembly drawings, pick-and-place data, testing requirements, and target delivery dates can also help create a more complete production plan.

Yes. Cir-Q-Tek supports small prototype orders as well as production quantities and does not limit service based solely on order size. PCB prototype samples generally take three days to build and two days to ship. Production manufacturing orders are typically ready to ship in 10 days to four weeks, depending on board complexity, components, testing needs, and order volume.

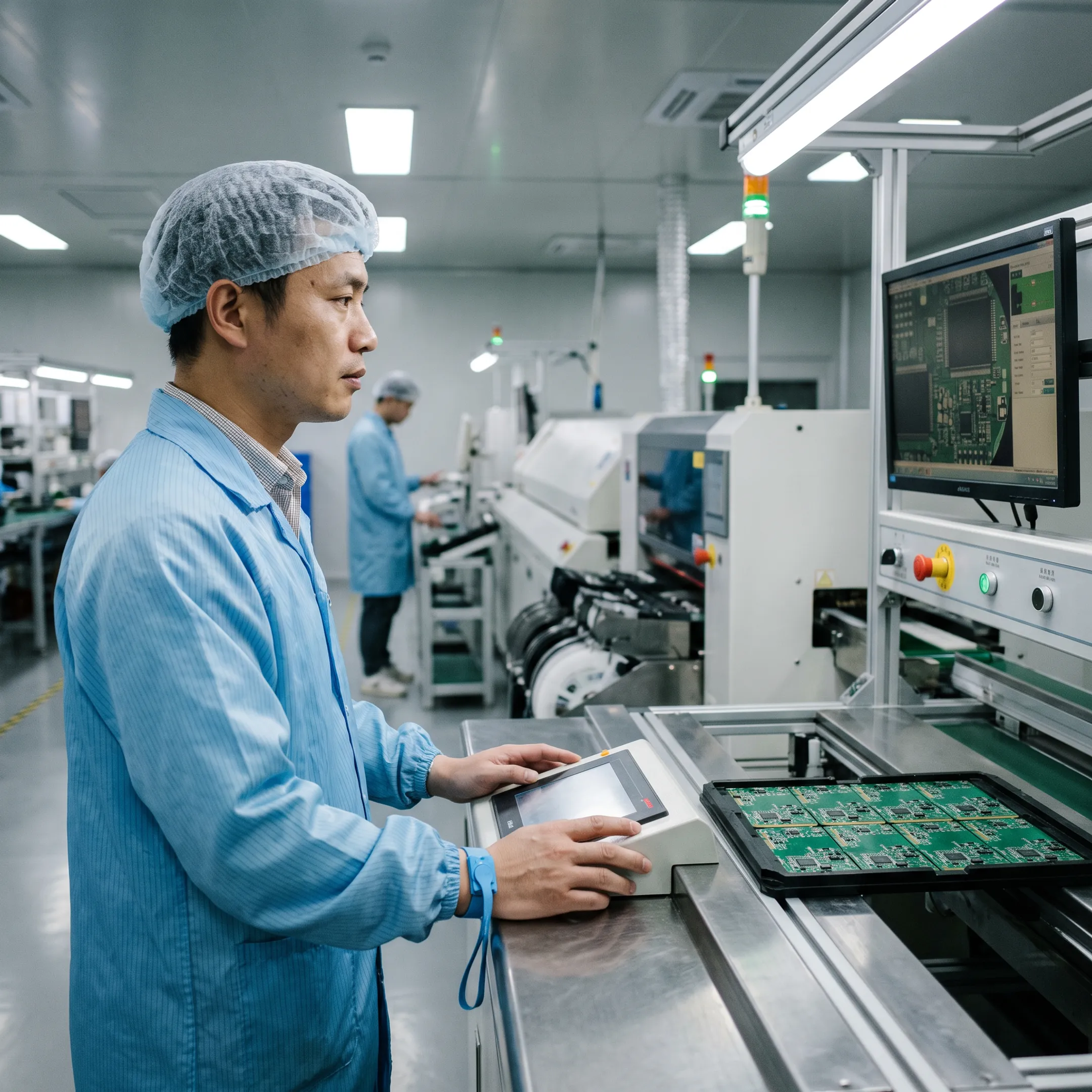

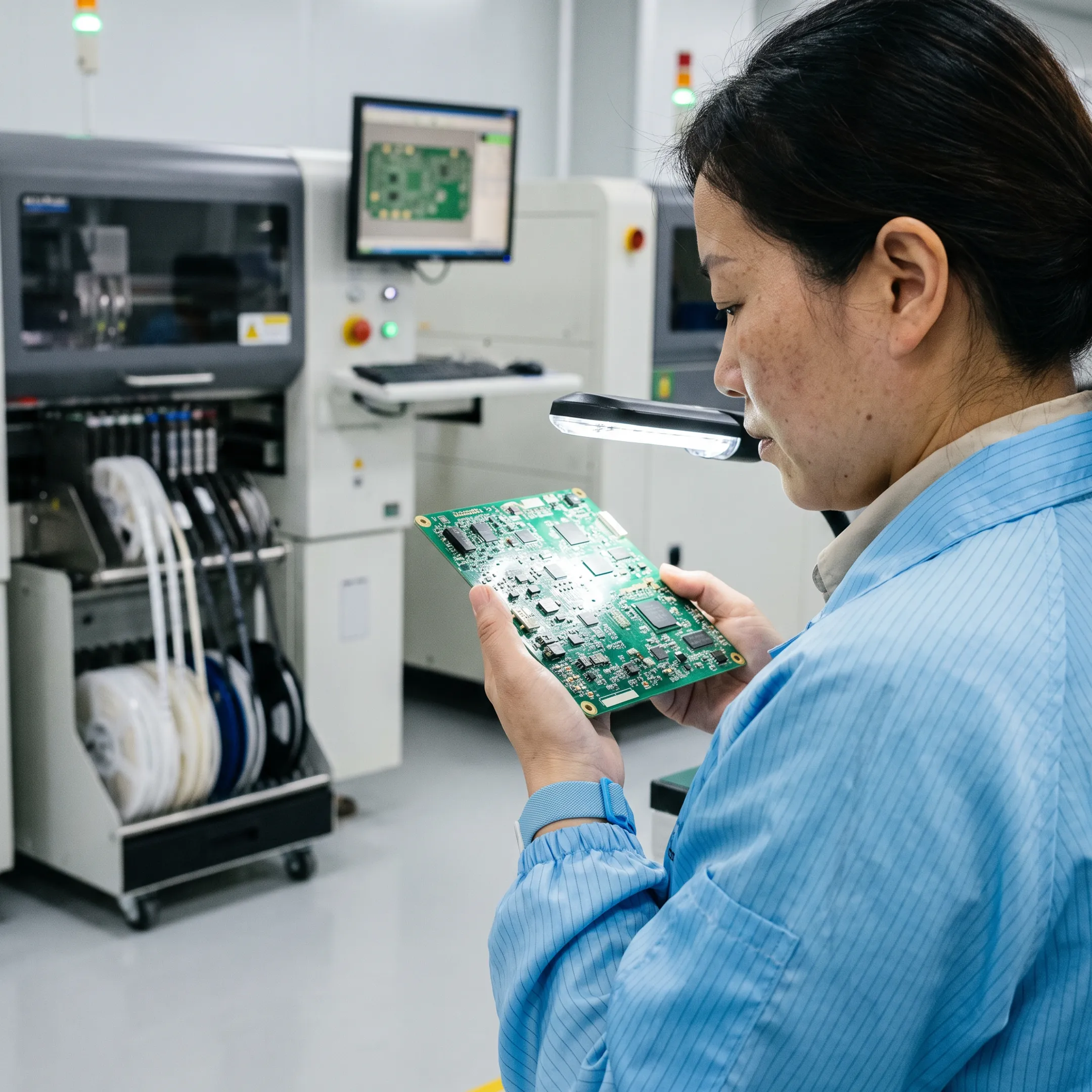

Cir-Q-Tek provides turnkey PCB assembly that includes component purchasing, SMT chip processing, through-hole assembly, testing, box build, and packaging. Its SMT lines use inline automated optical inspection and X-ray equipment for quality verification. The manufacturing capability supports fine-pitch technologies including 01005 components, QFN, CSP, and BGA packages with spacing as tight as 0.2 mm.

Cir-Q-Tek’s manufacturing facilities hold ISO 9001, ISO 13485, and IATF 16949 certifications, supporting quality-management requirements for general, medical-device, and automotive manufacturing programs. Automated optical inspection and X-ray equipment provide additional checks during SMT assembly. Customers should supply applicable product specifications, traceability expectations, inspection criteria, and regulatory requirements early so the production plan can be aligned accordingly.

Cir-Q-Tek’s procurement team can source obsolete or hard-to-get parts and identify suitable equivalents when available. Component availability, lead times, lifecycle status, and approved alternates should be reviewed before production begins to avoid unnecessary delays or redesigns. Sharing an accurate BOM and any approved-vendor-list requirements allows the team to evaluate sourcing options while maintaining the product’s required specifications.
