Many engineers still treat tolerance callouts as boilerplate — pick a number, move on. But that number determines whether parts fit, whether assemblies function, and whether a product survives its warranty period.
This article breaks down what "tight tolerances" actually mean, why they matter across regulated industries, and how manufacturers hold them consistently.
TL;DR
- Tight tolerances hold dimensional variation to ±0.0005" or tighter — far stricter than standard machining
- Fit, reliability, safety compliance, and equipment life all hinge on holding those limits
- Achieving them requires rigid machines, tight thermal control, plus precise inspection
- Medical, automotive, and electronics industries depend on them for regulated, critical parts
- Cir-Q-Tek machines precision-critical components to those same tight limits for OEM programs
What Are Tight Tolerances in CNC Machining
Tolerance is the acceptable dimensional variation from a nominal (target) measurement, expressed as a plus/minus range. A 1.000" bore with a ±0.001" tolerance can measure anywhere from 0.999" to 1.001" and still pass inspection.
Published machining benchmarks give a useful frame of reference. According to Modern Machine Shop, tolerances of ±0.002" to ±0.005" are generally easy to hold and maintain through tool life. Below ±0.001", things get harder, and many shops that regularly hold ±0.0002" to ±0.0005" are doing specialized work.

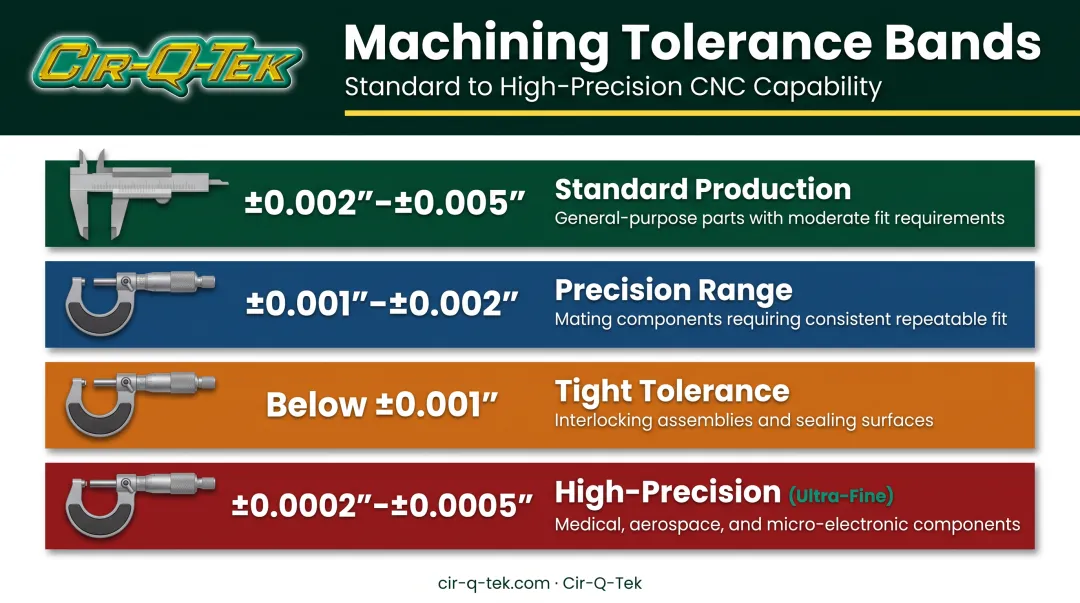

Tolerance bands at a glance:
- ±0.002" to ±0.005": Standard production tolerance, easy to maintain
- ±0.001" to ±0.002": Precision range, still routine for capable shops
- Below ±0.001": Where "tight tolerance" work begins
- ±0.0002" to ±0.0005": High-precision territory requiring process-specific proof
"Zero tolerance" doesn't exist in a measurable sense. Every dimension carries some allowable variation, even if it's a few microns. Measurement itself carries uncertainty; there's no such thing as a perfectly exact part.
The Four Types of Tolerance
- Unilateral — variation allowed in only one direction from nominal (for example, +0.002"/-0.000")
- Bilateral — variation allowed on both sides of nominal, equally or unequally
- Limit dimensions — maximum and minimum sizes stated directly instead of plus/minus
- Geometric (GD&T) — controls form, orientation, and location, governed by the ASME Y14.5 standard
Specify tight tolerances when fit and function require them. Looser bands cost less and run faster when the design allows.
Why Tight Tolerances Matter: Key Advantages
Tight tolerances show up in real cost, safety, and consistency outcomes on the shop floor and in the field.

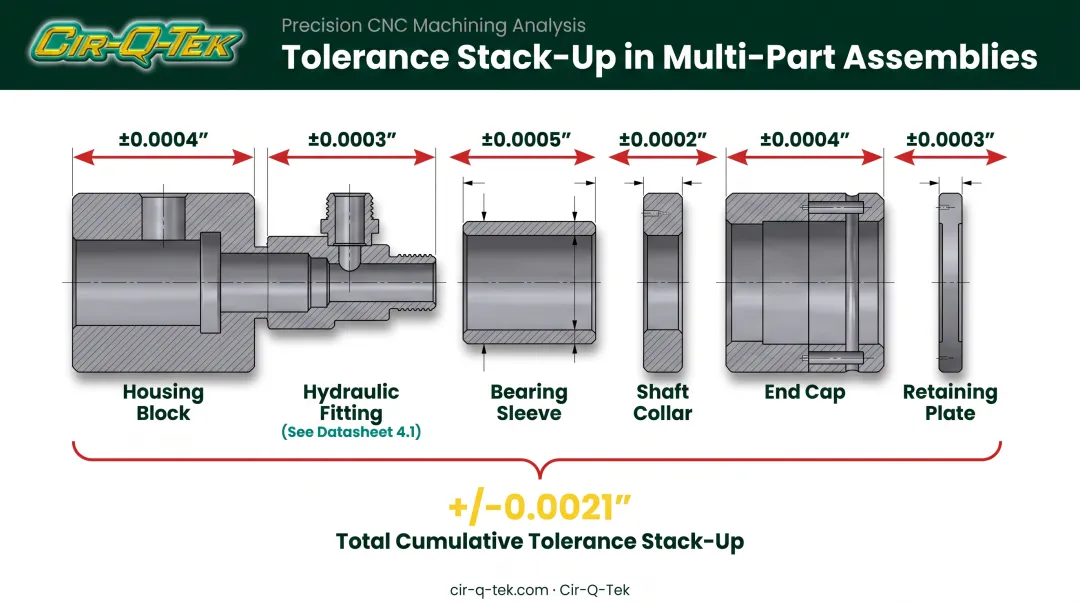

Advantage 1: Precise Fit and Reduced Tolerance Stack-Up
When multiple machined parts come together in an assembly, small dimensional errors on individual components can add up. Engineers call this tolerance stack-up, and it's a real risk in anything with more than a few mating parts.
Holding tighter tolerances on individual features keeps that cumulative error small enough that assemblies go together as designed — no shimming, no force-fitting, no rework on the line.
NIST notes that part function and assembly success depend heavily on how accurately the realized geometry matches the design intent, particularly as designs become more integrated and miniaturized (NIST IR 5628).
KPIs impacted:
- Assembly time
- Rework rate
- Warranty claims
Complex multi-component assemblies feel this most: engines, hydraulic systems, and surgical devices, where dozens of parts stack together in a single functional loop.
Advantage 2: Reliability, Safety, and Regulatory Compliance
Loose tolerances on rotating or load-bearing parts create vibration, uneven wear, and premature failure. In regulated industries, that's not just a quality issue — it's a compliance and safety issue.
A stark example: GM's 2025 recall of 597,630 vehicles was tied directly to out-of-specification crankshaft dimensions and surface finish, which damaged bearings and caused loss of propulsion in some vehicles (NHTSA Recall Report 25V-274).
The filing recorded over 28,000 related complaints, including more than 14,000 loss-of-propulsion allegations.
That's what happens when dimensional control on a critical rotating component slips.
Regulated industries build tolerance discipline into their quality systems:
- ISO 13485 governs medical device manufacturing quality systems
- IATF 16949 governs automotive production quality requirements
Both require documented process control, not just a tight number on a print.
Cir-Q-Tek's precision CNC machining operates under ISO 13485 and IATF 16949 certification, supporting medical and automotive clients who need traceable, audit-ready quality documentation behind every tight-tolerance part.
KPIs impacted:
- Failure rate
- Compliance pass rate
- Recall and warranty cost
Life-critical and safety-critical components subject to regulatory audit gain the most here: implantable devices, brake components, and steering assemblies.

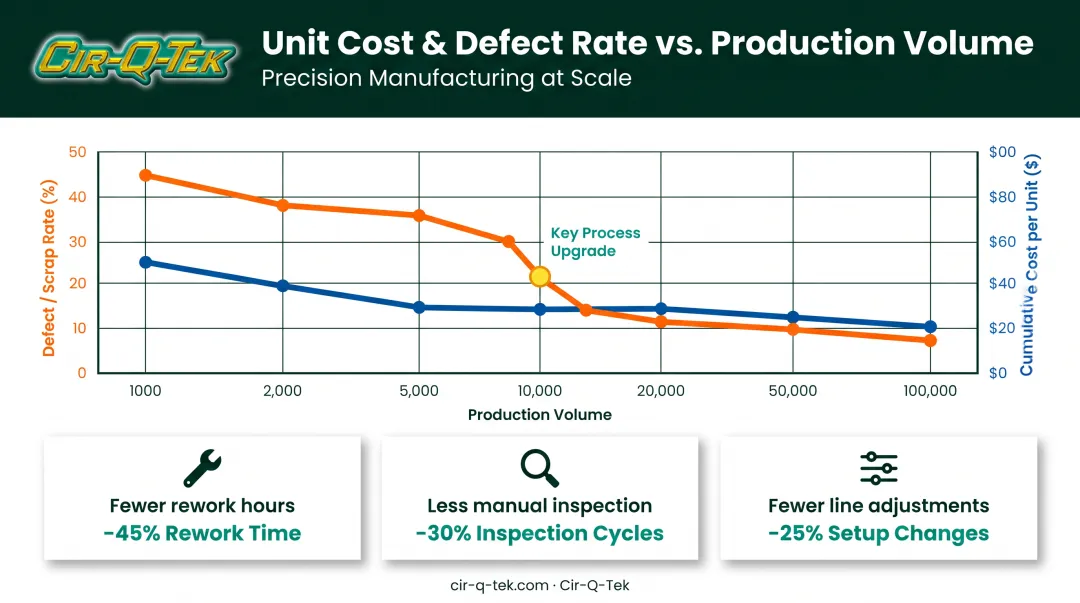

Advantage 3: Consistency and Cost Savings at Scale
Holding tight tolerances consistently across a production run — not just on the first article — is what actually saves money downstream, even though the per-part machining cost runs higher.
A well-documented NIST/GM case illustrates the point: GM analyzed 50 features affecting engine compression ratio, tightened tolerances on the critical few, and relaxed tolerances on non-critical features (NIST IR 5628). The result was lower manufacturing cost, a 50% reduction in compression-ratio variation, and a reported 0.8% fuel savings gain.
That's the model: tighten what matters, relax what doesn't, and control the process statistically.
Why this saves money:
- Fewer parts fail inspection
- Less scrap and rework
- Less need for 100% manual inspection
- Fewer adjustments needed on the customer's assembly line
KPIs impacted:
- Unit cost over volume
- Labor hours per assembly
- Defect and scrap rate
This pays off most in high-volume programs, where even small per-part savings compound across thousands of units.
What Happens When Tolerances Are Too Loose or Ignored
Skipping proper tolerance control risks more than a slightly imperfect part. The problems compound:
- Poor fit: vibration, rattling, or leaks in assembled products
- Assembly failure: parts that need excessive force or simply won't mate
- Premature wear: shortened equipment life from uneven load distribution
- Field failures: recalls, unplanned downtime, or safety incidents, as seen in the GM crankshaft case above
None of these show up on the inspection report the day the part ships. They surface months or years later, when fixes cost far more.
How Manufacturers Achieve and Maintain Tight Tolerances
Holding ±0.0005" isn't about one magic machine setting. It's a combination of equipment rigidity, thermal management, and programming discipline.
Core requirements include:
- Machine rigidity and thermal stability: cutting heat and motor-driven deformation can dominate machine error if left uncontrolled (NIST)
- Warm-up procedures: some turning centers show up to 0.001" of diameter shrinkage while reaching working temperature, according to Modern Machine Shop's reporting
- CAD/CAM programming: multiple finishing passes help control tool deflection and heat buildup rather than trying to remove all material in one aggressive pass
- High-resolution tooling and live tool changes: reduce setup variation between operations
The Ten-to-One Measurement Rule
A common industry rule of thumb: inspection equipment should measure roughly ten times more precisely than the tolerance it's verifying. If a feature is toleranced to ±0.0005", the gauge should resolve to about 0.00005".
This is a manufacturing-system guideline, not a universal gauge mandate. Some governing standards, like MIL-STD-45662A, use a 4:1 ratio instead. What matters is that the measurement method is documented and defensible.
Documented measurement only holds if the machining process limits variation in the first place. Cir-Q-Tek's ISO 9001-certified operations use multi-axis, multi-tasking milling and turning equipment with live tooling and multiple spindles, so complex parts can finish in a single setup instead of multiple repositionings that each add error.

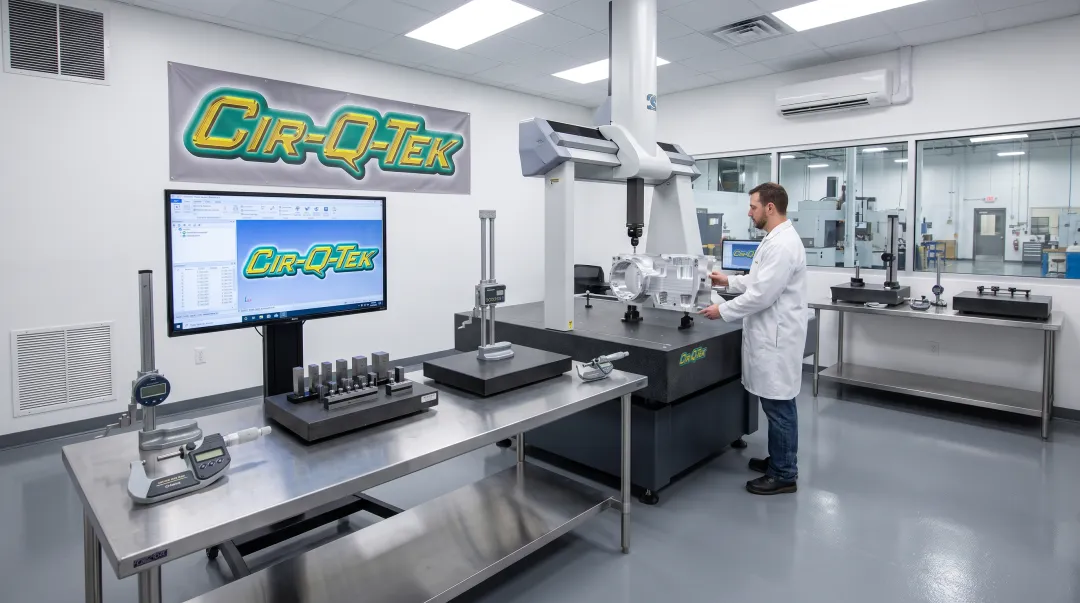

High-end metrology gear and a secondary inspection stage at the Pennsylvania facility verify machining tolerances of ±0.0005" before parts ship to medical, automotive, and industrial clients.
Choosing the Right Tolerance for Your Project
More precision always costs more. Specify the loosest tolerance that still meets functional requirements — not the tightest number that seems "safe."
A practical approach:
- Identify the functional requirement first. What actually needs to fit, seal, or align? Tolerance everything else loosely.
- Run a stack-up analysis on the critical assembly loop before tightening individual dimensions across the board.
- Prototype before committing to production. Validate fit and function on a small batch before locking in a full run.
- Work with a partner who reviews your drawings. A partner with CAD/CAM expertise can flag unnecessary tight-tolerance callouts before they drive up cost.
Over-tightening every dimension on a print raises cost without making the part more reliable.
Conclusion
Tight tolerances mean control over fit, safety, and cost. Smaller numbers on a drawing only matter when they produce consistent, predictable parts.
Those benefits compound. A part that fits right the first time saves assembly labor today and reduces warranty risk for years. A process that holds tolerance across a production run saves money on every unit, not just the first one off the line.
Tolerance management works best as an ongoing quality discipline, not a one-time drawing decision. Pair it with a manufacturing partner who understands both the engineering and the economics behind the number.
Frequently Asked Questions
What does "tight tolerances" mean?
Tight tolerances mean holding a part's dimensional variation to a very small, controlled range, typically ±0.0005" or tighter. Standard machining tolerances are usually ±0.005" to ±0.001".
What is considered a tight tolerance in machining?
Most industries treat ±0.001" and tighter as a tight tolerance, with ±0.0005" common for precision work. Aerospace and medical components often require even stricter limits.
What is the tightest tolerance in machining?
Ultra-precision applications like semiconductor equipment can reach below ±0.0002", sometimes into submicron territory. This level of precision is highly specialized and significantly more expensive than standard tight-tolerance work.
Is there such a thing as zero tolerance machining?
No. True zero tolerance is physically impossible; every measurement carries some uncertainty. Even the tightest parts still allow a measurable, extremely small variation.
What is the purpose of tight tolerance ranges?
They ensure parts fit, function, and perform reliably together, particularly in regulated or safety-critical assemblies like medical devices and automotive components.
What are the four types of tolerances?
The four common types are:
- Unilateral: variation allowed in one direction only
- Bilateral: variation allowed in both directions
- Limit dimensions: stated maximum and minimum sizes
- Geometric (GD&T): controls form and location per ASME Y14.5
