Introduction
Engineers keep asking for more pins in less space, and flexible circuits keep asking for less rigidity. Those two demands collide the moment you drop a Ball Grid Array onto a bendable substrate.
The flexible PCB market hit $23.8 billion in 2024 and is projected to reach $50.8 billion by 2030, growing at a 13.7% CAGR according to Grand View Research. That growth is being driven by wearables, medical devices, and foldable electronics—applications that demand high pin-count ICs squeezed into a form factor that bends.
The challenge is structural. BGA packages are rigid, solder-ball-based, and unforgiving of movement, while flex substrates are built to bend. Teams that ignore that mismatch struggle with cracked joints, yield loss, and field failures.
This guide breaks down how BGA-on-flex works, where it pays off, how it fails, and the design and manufacturing practices that keep assemblies reliable in the field.
Key Takeaways
- BGA packages maximize pin density on flex circuits but need a rigid or stiffened mounting zone
- CTE mismatch and bend stress drive most solder joint cracking on flex-mounted BGAs
- Local stiffeners, via-in-pad, and copper hatching are the core BGA-on-flex reliability techniques
- X-ray inspection is required—hidden solder balls can't be checked visually
- A partner with proven fine-pitch BGA and flex experience cuts first-pass defect risk
Understanding BGA on Flex PCB: The Basics
Mounting a BGA onto a flexible circuit means soldering an area-array package, one built for a stable, flat surface, onto a substrate designed to move. This pairing is common in compact electronics where board space is scarce and bend or fold requirements are non-negotiable.
What Is a BGA Package?
A BGA (Ball Grid Array) uses a grid of solder balls on its underside instead of perimeter leads. That underside area array packs far more I/O into the same footprint than a QFP-style leaded package ever could.

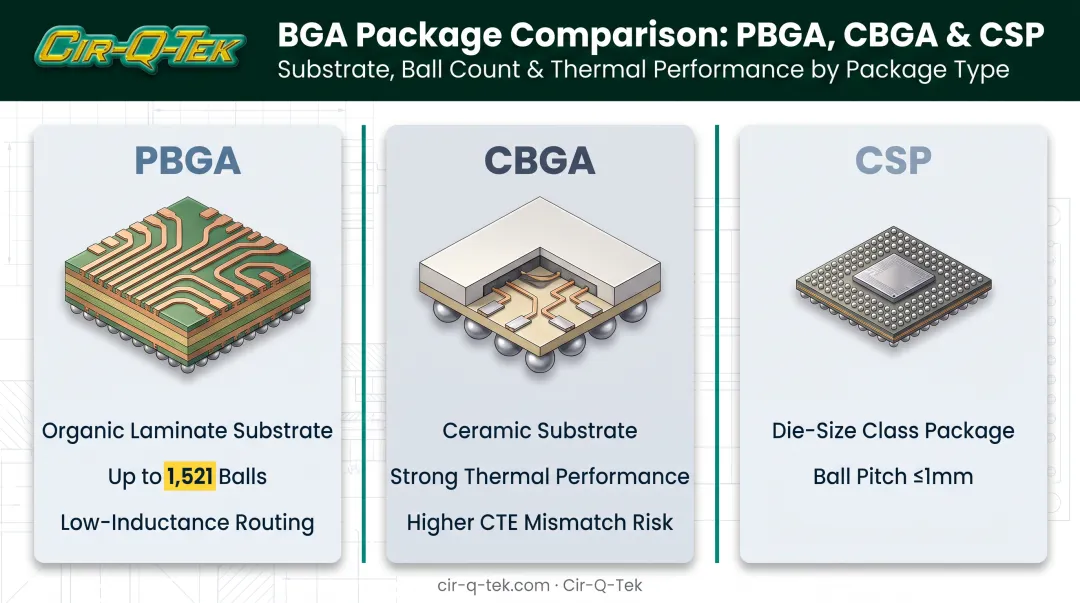

Common BGA variants include:
- PBGA (Plastic BGA): Organic laminate substrate, supports up to 1,521 balls in some designs, low-inductance routing
- CBGA (Ceramic BGA): Ceramic substrate, strong thermal performance, higher CTE mismatch risk vs. PCB
- CSP (Chip-Scale Package): Not a substrate type but a size class, typically near die-size with ball pitch of 1mm or less
Don't treat these as interchangeable. Each has a different substrate material, and that difference matters once you're bonding to flexible polyimide.
What Makes a PCB "Flex"?
Flex PCBs are built on thin polyimide film instead of rigid FR4. That polyimide base is what lets the circuit bend, fold, or wrap into tight spaces without cracking.
Typical flex applications include:
- Wearable health monitors and fitness trackers
- Medical devices with tight internal packaging constraints
- Foldable and hinge-based consumer electronics
- Compact RF and antenna modules
Why Combine BGA With Flex Circuits?
The pairing shows up when a design needs both high pin-count components and a bendable, space-saving layout.
One documented case: a six-layer medical rigid-flex board used a 0.4mm-pitch BGA with conductive-filled blind via-in-pad structures to escape the center balls within a 5.75 mil air gap and a 4.25 mil routing clearance.
Key Benefits of Using BGA Packages on Flex PCBs
For many designs, BGA-on-flex is the only practical way to hit both the pin count and the form factor required.
Space efficiency. Underside solder-ball arrays use less routing area than perimeter leads, which matters on a flex circuit where every millimeter counts.
Electrical and thermal performance. BGA packages typically deliver better electrical and thermal performance than fine-pitch QFPs. The ball-to-pad path is shorter and more direct than a bent lead.
Manufacturing yield. Large, uniform solder pads sidestep the coplanarity defects that plague fine leads. No bent leads means fewer alignment failures during reflow.
Weight and footprint. PBGA packages are explicitly marketed as low-profile and lightweight, which is why they appear in:
- Wearable health monitors
- Foldable display modules
- Compact RF antenna assemblies
- Portable medical diagnostic tools
A design that needs 200+ I/O in a bendable, sub-millimeter-thick package often has no other viable option.

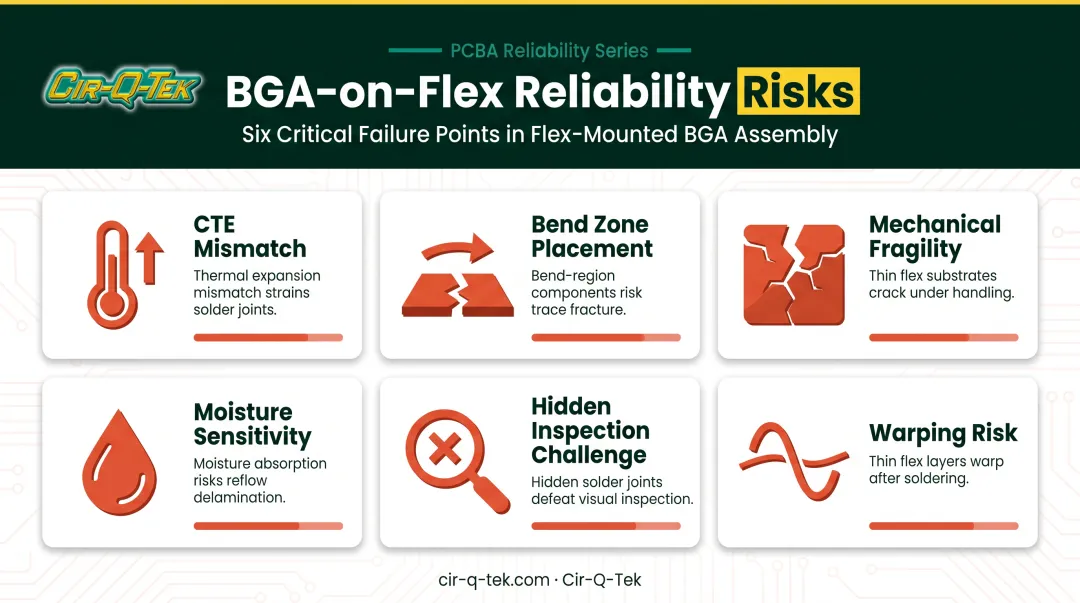

Design Challenges and Reliability Risks of Mounting BGA on Flex PCB
These design and process risks drive most BGA-on-flex field failures.
CTE mismatch. A rigid BGA package and a flexible polyimide substrate expand at different rates under thermal cycling. Ceramic BGAs carry a documented CTE mismatch risk against the board. Repeated thermal or flex cycles stress solder joints until they fatigue.
Bend zone placement. Never place a BGA in an active bend area. An IPC-hosted mechanical study found that maximum local board curvature correlates directly with maximum corner-joint stress on the BGA. Every BGA needs a rigid or stiffened island, full stop.
Mechanical fragility. Thin flex substrates under a BGA are vulnerable to:
- Pad cratering (resin/weave separation beneath the pad)
- Laminate cracking during drop or vibration events
- Handling damage during assembly before stiffeners are attached
Moisture sensitivity. BGA parts carry an MSL rating per J-STD-020, with handling and baking rules per J-STD-033. MSL 3 devices, for example, have a floor life of just 168 hours at 30°C/60% RH before a bake is required. Skip that step and you risk popcorning during reflow.
Hidden inspection challenge. Solder balls sit underneath the package body, invisible to a camera. Optical inspection alone cannot verify them.
Warping risk. Flex material behaves differently from rigid FR4 in reflow. Without proper support, boards can warp or twist mid-cycle and stress joints before they solidify.
Design Best Practices for Reliable BGA on Flex PCB
None of the risks above are disqualifying. They're manageable with the right design choices, applied early.
Add local stiffeners beneath the BGA footprint. This gives the mounting zone the rigidity it needs during assembly and end-use, without stiffening the rest of the board where flexibility is the point.
Use via-in-pad with blind microvias for fanout. A documented medical case hit a 0.75 aspect ratio with a 6 mil drill, 12 mil pad, and 4 mil dielectric—match drill and dielectric to your pitch, not a rigid-board rule of thumb.
Switch to copper hatching, not solid planes, near the BGA. Hatched copper preserves bend flexibility while still offering structural support. Hatch gaps introduce periodic impedance variation, so simulate before you commit.
Keep BGA pads and vias clear of bend zones and edges. Flex fabricators commonly recommend at least 20 mil clearance for plated through-holes near a bend; extend that same discipline to the entire BGA escape-via field.
Design to IPC-2223 and IPC-7351. IPC-2223 covers flex/rigid-flex construction and bend limits; IPC-7351, with the component supplier drawing, sets land pattern geometry.
Address controlled impedance early. Any high-speed BGA signal crossing a flex-to-rigid transition needs a validated stackup and return path, not a rigid-board impedance rule carried over unchanged.
Manufacturing and Assembly Considerations for BGA on Flex PCB
Design intent only matters if the assembly process can execute it. Three process choices drive yield on BGA-on-flex builds: paste and stencil, reflow profile, and inspection.
Solder Paste and Stencil Selection
Fine-pitch BGA printing on flex needs powder particle size matched to your smallest aperture. Stencil thickness should follow the land pattern, not a generic default.
Reflow Profile Tuning
Flex assemblies respond differently to heat than rigid boards. Profile preheat, soak, reflow, and cooling on the actual populated board with thermocouples—a stiffener or carrier changes the thermal response entirely.
Inspection
AOI checks visible paste, placement, and exposed features. X-ray confirms the hidden BGA joints underneath.
Inline AOI and X-ray on every SMT line—rather than offline spot checks—catches defects before they move downstream:
- Bridging
- Voids
- Misalignment

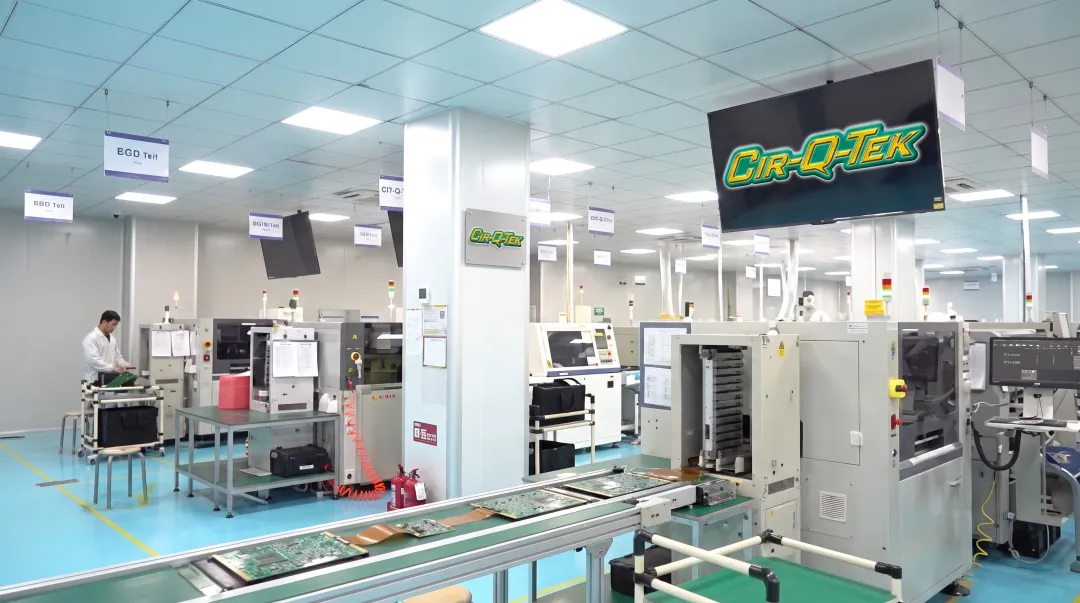

Cir-Q-Tek runs inline AOI and X-ray on its SMT lines as standard production workflow for this class of assembly.
Choosing the Right Manufacturing Partner for BGA on Flex PCB
Not every PCB shop that claims flex capability can actually run fine-pitch BGA on it reliably. A few things worth checking before you commit a design:
Fine-pitch BGA track record. Confirm ball spacing down to 0.2mm plus real flex and rigid-flex experience. Cir-Q-Tek pairs 0.2mm BGA assembly with flexible and rigid-flex fabrication as a one-stop PCB/PCBA partner.
Relevant certifications. For medical or automotive end-use, require ISO 9001, ISO 13485, and IATF 16949. These aren't paperwork exercises—they enforce the process controls high-reliability BGA-on-flex builds need.
Speed and responsiveness. Quick-turn prototyping matters, and so does reaching someone who understands the design. Cir-Q-Tek's U.S./Shenzhen dual-office model gives domestic responsiveness at offshore pricing, with 3-day build, 2-day ship quick-turn.
Getting these three checks right upfront saves far more time than fixing a bad BGA-on-flex build after the fact.
Frequently Asked Questions
What is a flex PCB board?
A flex PCB is a circuit built on a thin, bendable polyimide substrate. It allows the board to flex, fold, or wrap into tight or dynamic spaces where a rigid board simply wouldn't fit.
What is a BGA on a PCB?
A BGA is a surface-mount package that uses an array of solder balls on its underside instead of leads. This arrangement enables much higher pin density in a smaller footprint than leaded packages.
Can flex PCBs have vias?
Yes. Flex PCBs can include plated through-holes, blind vias, and even microvias. The key rule is keeping via placement out of active bend zones to avoid cracking.
Does BGA on flex PCB require a stiffener?
Typically, yes. A stiffener beneath the BGA mounting area provides the rigidity needed for reliable solder joints during both assembly and long-term use.
What is the smallest BGA pitch that can be mounted on a flex PCB?
Advanced manufacturers can achieve fine-pitch BGA spacing down to around 0.2mm on flex substrates. This requires precise via-in-pad routing and tightly controlled stencil design.
How is BGA solder joint reliability tested on flex PCBs?
Manufacturers commonly use X-ray inspection, in 2D or 3D, along with mechanical drop testing to detect hidden solder joint cracks, voids, or misalignment beneath the package.
